| 說明 | Intel® Core™ Ultra 9 285K Processor Intel® Core™ Ultra 9 285K is the flagship desktop CPU of the Arrow Lake (Series 2) generation. It marks a significant archit | AMD Ryzen™ 9 9900X Processor AMD Ryzen 9 9900X is a high-performance desktop processor from the Ryzen 9000 Series, designed for both elite gaming and intensive | Intel® Core™ Ultra 7 265K Processor Intel® Core™ Ultra 7 Processor 265K is a high-performance desktop processor from the "Arrow Lake" (Series 2) family. It feat | AMD Ryzen™ 7 9700X Processor The AMD Ryzen™ 7 9700X is a high-performance 8-core, 16-thread desktop processor based on the Zen 5 architecture ("Granite Ridge") | Model Pro WS TRX50-SAGE WIFI CPU AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors * | AMD Ryzen™ 7 9800X3D Processor AMD Ryzen™ 7 9800X3D is widely considered the current "gaming king". It is an 8-core, 16-thread processor built on the Zen 5 arch |
| 內容 | Intel® Core™ Ultra 9 285K Processor
Intel® Core™ Ultra 9 285K is the flagship desktop CPU of the Arrow Lake (Series 2) generation. It marks a significant architectural shift for Intel, moving away from hyper-threading in favour of a 24-core design (8 Performance cores and 16 Efficiency cores) and introducing a dedicated Neural Processing Unit (NPU) for AI tasks.
-
Architecture : Built on the LGA 1851 socket (requires a new Intel 800 Series chipset motherboard like Z890).
-
Cores / Threads : 24 Cores (8P + 16E) and 24 Threads.
-
Clock Speeds : Base speed of 3.7 GHz, with a Max Turbo frequency of up to 5.7 GHz.
-
Cache : 36 MB Intel® Smart Cache (L3) and 40 MB L2 cache.
-
Power (TDP) : Power (TDP): 125W Processor Base Power, with a Maximum Turbo Power of 250W.
-
Memory Support : Up to 256 GB of DDR5 6400 MT/s memory.
-
Graphics : Intel® Graphics (up to 2GHz).
款式價格: TRAY=HK$3949.0; BOX=HK$4359.0 | AMD Ryzen™ 9 9900X ProcessorAMD Ryzen 9 9900X is a high-performance desktop processor from the Ryzen 9000 Series, designed for both elite gaming and intensive content creation. It features the new Zen 5 architecture and provides a significant uplift in instructions per cycle (IPC) over the previous generation.
-
Cores/Threads : 16 Cores / 24 Threads
-
Clock Speeds : 4.4 GHz (Base) / 5.6 GHz (Boost)
-
Cache : 76 MB Total (64 MB L3 + 12 MB L2)
-
TDP : 120W (requires high-end cooling, typically a 360mm AIO)
-
Memory Support : DDR5-5600 (native) with AMD EXPO support
-
Platform : Socket AM5, supporting PCIe 5.0
-
Integrated Graphics : AMD Radeon™ Graphics (2 cores at 2200 MHz)
款式價格: TRAY=HK$2649.0; BOX=HK$2889.0 | Intel® Core™ Ultra 7 265K Processor
Intel® Core™ Ultra 7 Processor 265K is a high-performance desktop processor from the "Arrow Lake" (Series 2) family. It features a hybrid architecture with 20 cores (8 Performance-cores and 12 Efficient-cores) and 20 threads.
-
Architecture : Built on the LGA 1851 socket (requires a new Intel 800 Series chipset motherboard like Z890).
-
Cores / Threads : 20 Cores (8P + 12E) and 20 Threads.
-
Clock Speeds : Base speed of 3.9 GHz, with a Max Turbo frequency of up to 5.5 GHz.
-
Cache : 30 MB Intel® Smart Cache (L3) and 36 MB L2 cache.
-
Power (TDP): 125W Processor Base Power, with a Maximum Turbo Power of 250W.
-
Memory Support : Up to 256 GB of DDR5 6400 MT/s memory.
-
Graphics : Intel® Graphics (up to 2GHz).
款式價格: TRAY=HK$2199.0; BOX=HK$2279.0 |
AMD Ryzen™ 7 9700X Processor
The AMD Ryzen™ 7 9700X is a high-performance 8-core, 16-thread desktop processor based on the Zen 5 architecture ("Granite Ridge"). It is designed for the Socket AM5 platform, offering a significant jump in power efficiency over its predecessor by operating at a default 65W TDP
-
Cores/Threads : 8 Cores / 16 Threads
-
Clock Speeds : 3.8 GHz (Base) / 5.5 GHz (Boost)
-
Cache : 40 MB Total (32 MB L3 + 8 MB L2)
-
TDP : 65W
-
Socket Compatibility : AM5 (supports DDR5 and PCIe 5.0).
-
Integrated Graphics : AMD Radeon™ Graphics (2 cores at 2200 MHz)
款式價格: TRAY=HK$1729.0; BOX=HK$2379.0 |
AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors **
*Refer to www.asus.com for CPU support list.
**System boot may take longer with Threadripper™ 9000 series CPUs due to memory calibration.This behavior is normal. Please allow sufficient time for the process to complete.
4 x DIMM slots, DDR5, ECC Registered Memory*
4 Channel Memory Architecture
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
2 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot(x8 mode)
1 x PCIe 4.0 x16 slot
1 x PCIe 4.0 x16 slot(x4 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/)
Total supports 3 x M.2 slots, 4 x SATA 6Gb/s ports
AMD Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD TRX50 Chipset
M.2_3 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
1 x SlimSAS slot supports PCIe 4.0 x4 mode NVMe device
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
1 x Marvell® AQtion 10Gb Ethernet
1 x Intel® I226-LM 2.5Gb Ethernet
Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require SV3 or later version for full functions, Windows 11 SV1/2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Rear USB (Total 9 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A )
2 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C® with up to 27W PD/QC4+)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Realtek ALC1220P Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Dedicated audio PCB layers
- Unique de-pop circuit
* A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.
1 x USB 20Gbps port (1 x USB Type-C®)
6 x USB 10Gbps ports (6 x Type-A)
2 x USB 2.0 port (2 x Type-A)
1 x Wi-Fi Module
1 x Marvell® AQtion 10Gb Ethernet port
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
4 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
Power related
2 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
1 x 6-pin PCIe Power connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
1 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x BMC header
1 x COM Port header
1 x USB4 header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x Start button
1 x Safe boot button
1 x ReTry button
1 x LN2 mode jumper
1 x Slow mode switch
1 x SPI TPM header (14-1pin)
1 x 10-1 pin system panel header
1 x Chassis intrusion header
1 x Thermal Sensor header
ASUS Q-Design
- Q-Code
- M.2 Q-Latch
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink and onboard thermal pads
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design & Business Focused Features
- 24/7 Reliability
- Overcurrent Protection
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express(ACCE)
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
- FlexKey
256 Mb Flash ROM, UEFI AMI BIOS
WOL by PME, PXE (UEFI mode)
Cables
2 x SATA 6Gb/s cables
1 x CPU 8-pin to PCIe 8-pin adapter cable package
1 x Thermistor cable pack
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x M.2 Q-Latch package(2 in 1)
2 x M.2 Rubber Packages
1 x Q-connector
Documentation
1 x ACC Express Activation Key Card
1 x QSG
CEB Form Factor
12 inch x 11 inch

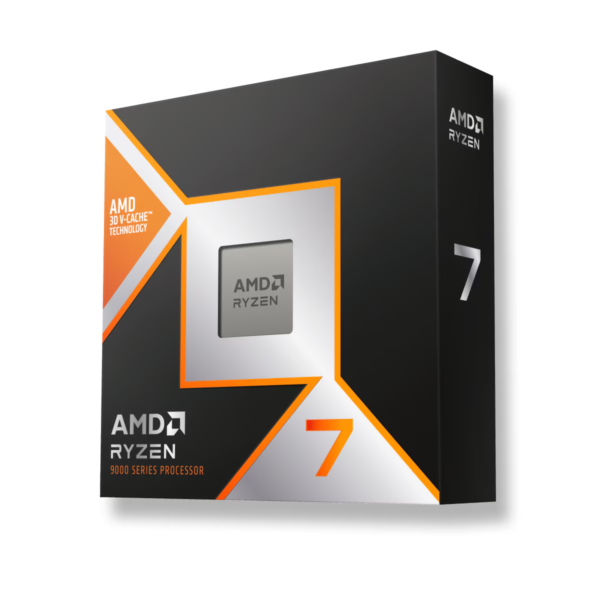

(30.5 cm x 28.3 cm) | AMD Ryzen™ 7 9800X3D Processor
AMD Ryzen™ 7 9800X3D is widely considered the current "gaming king". It is an 8-core, 16-thread processor built on the Zen 5 architecture. Its standout feature is the 2nd Gen 3D V-Cache, which has been relocated under the processor cores to improve heat transfer, allowing for significantly higher clock speeds and better sustained performance than its predecessors.
-
Cores/Threads : 8 Cores / 16 Threads
-
Clock Speeds : 4.7 GHz (Base) / 5.2 GHz (Boost)
-
Cache : 104 MB Total (96 MB L3 + 8 MB L2)
-
TDP : 120W (requires high-end cooling)
-
Socket Compatibility : AM5 (supports DDR5 and PCIe 5.0).
-
Integrated Graphics : AMD Radeon™ Graphics (2 cores at 2200 MHz)
款式價格: TRAY=HK$2949.0; BOX=HK$3259.0 |
| 其他資訊 |
| 尺寸 |
TRAY, BOX
|
| Architecture |
Built on the LGA 1851 socket (requires a new Intel 800 Series chipset motherboard like Z890).
|
| Cores / Threads |
24 Cores (8P + 16E) and 24 Threads.
|
| Clock Speeds |
Base speed of 3.7 GHz, with a Max Turbo frequency of up to 5.7 GHz.
|
| Cache |
36 MB Intel® Smart Cache (L3) and 40 MB L2 cache.
|
| Power (TDP) |
Power (TDP): 125W Processor Base Power, with a Maximum Turbo Power of 250W.
|
| Memory Support |
Up to 256 GB of DDR5 6400 MT/s memory.
|
| Graphics |
Intel® Graphics (up to 2GHz).
|
|
| 尺寸 |
TRAY, BOX
|
| Cores/Threads |
16 Cores / 24 Threads
|
| Clock Speeds |
4.4 GHz (Base) / 5.6 GHz (Boost)
|
| Cache |
76 MB Total (64 MB L3 + 12 MB L2)
|
| TDP |
120W (requires high-end cooling, typically a 360mm AIO)
|
| Memory Support |
DDR5-5600 (native) with AMD EXPO support
|
| Platform |
Socket AM5, supporting PCIe 5.0
|
| Integrated Graphics |
AMD Radeon™ Graphics (2 cores at 2200 MHz)
|
|
| 尺寸 |
TRAY, BOX
|
| Architecture |
Built on the LGA 1851 socket (requires a new Intel 800 Series chipset motherboard like Z890).
|
| Cores / Threads |
20 Cores (8P + 12E) and 20 Threads.
|
| Clock Speeds |
Base speed of 3.9 GHz, with a Max Turbo frequency of up to 5.5 GHz.
|
| Cache |
30 MB Intel® Smart Cache (L3) and 36 MB L2 cache.
|
| Power (TDP) |
125W Processor Base Power, with a Maximum Turbo Power of 250W.
|
| Memory Support |
Up to 256 GB of DDR5 6400 MT/s memory.
|
| Graphics |
Intel® Graphics (up to 2GHz).
|
|
| 尺寸 |
TRAY, BOX
|
| Cores/Threads |
8 Cores / 16 Threads
|
| Clock Speeds |
3.8 GHz (Base) / 5.5 GHz (Boost)
|
| Cache |
40 MB Total (32 MB L3 + 8 MB L2)
|
| TDP |
65W
|
| Socket Compatibility |
AM5 (supports DDR5 and PCIe 5.0).
|
| Integrated Graphics |
AMD Radeon™ Graphics (2 cores at 2200 MHz)
|
| |
| 尺寸 |
TRAY, BOX
|
| Cores/Threads |
8 Cores / 16 Threads
|
| Clock Speeds |
4.7 GHz (Base) / 5.2 GHz (Boost)
|
| Cache |
104 MB Total (96 MB L3 + 8 MB L2)
|
| TDP |
120W (requires high-end cooling)
|
| Socket Compatibility |
AM5 (supports DDR5 and PCIe 5.0).
|
| Integrated Graphics |
AMD Radeon™ Graphics (2 cores at 2200 MHz)
|
|
